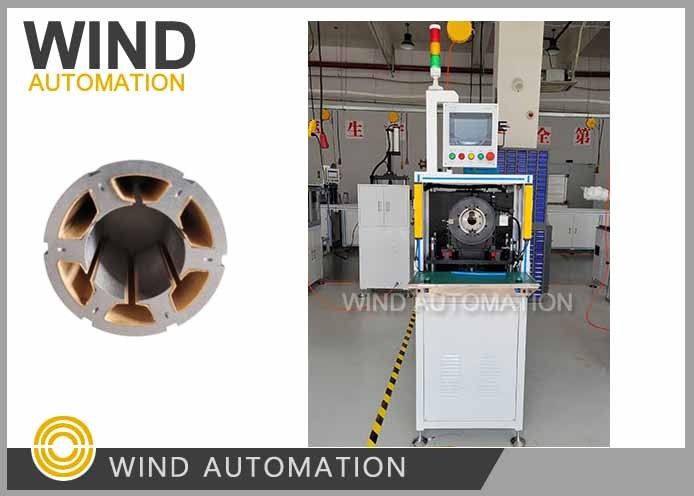

BLDC Motor Stator Slot Liner Paper Inserting Machine WIND-IP-5

BLDC Motor Stator Slot Liner Paper Inserting Machine WIND-IP-5

1.This machine is used for brushless stator insulation paper insertion process.

2.Quickly change tooling, simple operation, convenient and reliable.

3.It can automatically load and unload, servo indexing, and mechanically cooperate with paper feeding and cutting.

4.Feeding method: Servo feeding.

5.Indexing method: Servo indexing.

6.Paper feeding accuracy: ±0.15mm.

7.Feeding efficiency: 1 second/slot.

8.Insulating paper: Various types of insulating paper materials currently on the market.

9.Working air pressure: 0.5-0.7MPa.

10.Applicable fields:

Application:

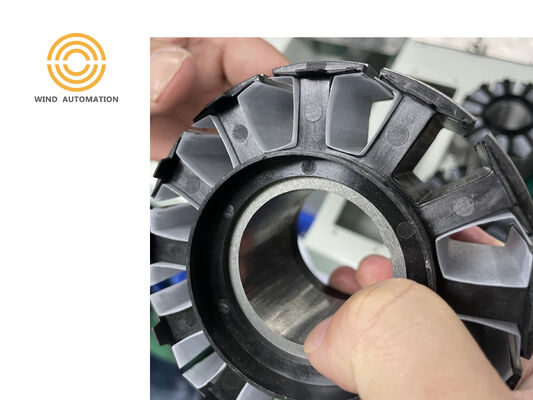

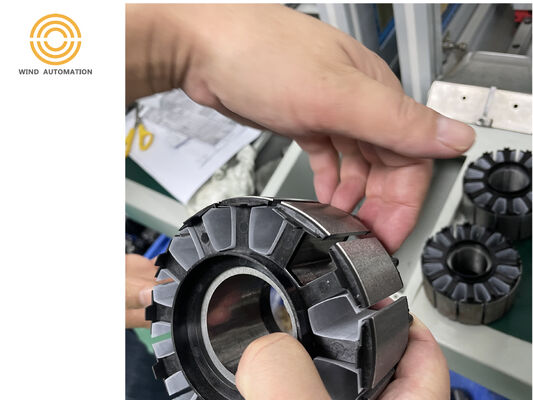

This paper inserting machine form, cut and insert the insulation paper polyester to BLDC Motor stator's slot,

Such as power tools, garden tools, vacuum cleaner motors, automotive motors, small household appliances, and other fields

the process is forming, cutting, inserting, indexing to next slot,

repeat the action until all the setted armature slots are finished,

Motor Manufacturer Clinet Question:

Do you have an way to insulate these stators,

Wind Automation Answer
