Polyester Forming Cuffing Creasing Cutting Machine For Slot Wedge Production

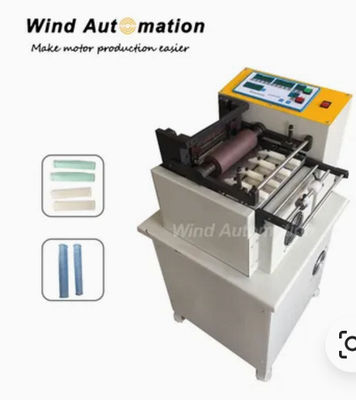

Varies Wedge Forming Cuffing Creasing Cutting Machine For Slot Wedge Manufacturing​ WIND-300-WF

This machine form and cut the wedge for stators. It can cut, form, heat wedge. Wedge feeding length, and cutting speed can be programmable in HMI. It adopts a double row mould for wedge cutting. Wedge feeding is controlled by servo motor.

(1) Specification

(2) Feature

150mm Slot Cell Cuffing Machine Insulation Cell Folding And Creasing Machine

Fold and cut the motor insulation paper, then heat and creasing the cell insulation polyeste

film,DMD,PET,NMN,NHN,Nomex for application such as pump,ceiling fan, compressor,hood motors

Advantages

1. Simple and easy to operate

2. Machine can cut and bend insulation for the motors and

also cutting insulation without bending for other type of slotless motor

3. No maintenance needed, only polish or replace cutter after 2 year to 5 years usage

Parameter

Cutting width <150mm (WIND-150C-IF,if bigger need tailor made machine)

Slot insulation cutting width such as 120mm,250mm,300mm can be customized made

Cutting speed: 100pcs/minutes

Heating temperature: <200ºC

Insulation paper thickness 0.10mm~0.35mm

Edge folded width 2.5mm~4mm, 5~10mm(customized made)

Cutting length(marked as red dimension) < 70mm (Servo feeding)

Cutting length<40mm (Mechanical feeding)

Creasing Cuffing length related to the thickness of iron plate fixture(for example 5mm)

Features: suitable for the production of insulating molded parts for motor slots,

Adopting one-way bearing mechanical feeding, feeding precision and simple operation, cutting insulating paper with AC induction motor for circular rotation, avoiding the use of wind pressure or oil pressure, automatic detection of no material in the insulating paper roll, automatic shutdown, and temperature control of the mold , Make the insulation sheet stable, save time and effort for control, debugging and maintenance

Control system and accessories: geared motors, temperature regulators, stepper motors, heating systems, etc.

Temperature control: 0--150ºC

For insulation paper forming, indentation and other equipment, our company has many years of development experience, and can develop molds and manufacture corresponding equipment for various molded products to meet different needs

(3) Application
Suitable for small and medium three phase motor, gasoline generator motor etc

Question and Answer:

Question:

 Can you please tell me the thickness range (ie. micron) and the width range (ie. mm) of the polyester film that we can put in this machine?

Answer:

 and some of your customers wanted these films (Polyester Film, DMD, NMN.. etc.) as formed,

Beside supply machines, our compamy also produced the formed films for our customers in China,

Hope the machine WIND-300-WF could help your customer,

Please click below photo to view video
