How to Press The Wire to Commutator Bar Of Starter Brazil Market
Detailed Product Description
| Condition: | New | Working Station: | Combined Function Machine One Station |
|---|---|---|---|
| Handled Wire Size: | Starter Round Conductor 1.8mm To 3.4mm | Hairpin Forming Process: | Straighten Alignment, Peel Enamel,cutting And Forming, Unloading |
| After Sales: | Engineers Available To Service Machinery Overseas | HS Code: | 84798110 |

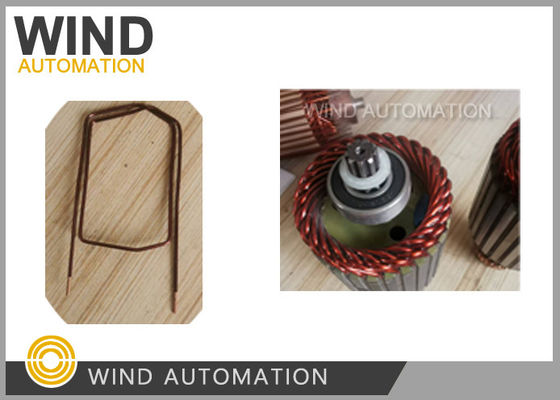

Automobile Round Wire insertion Hairpin Coil Winding Machine For Car Starter Armature Manufacturing
Application:

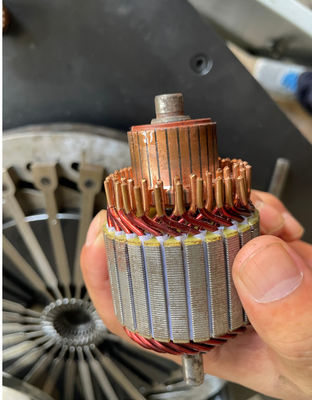

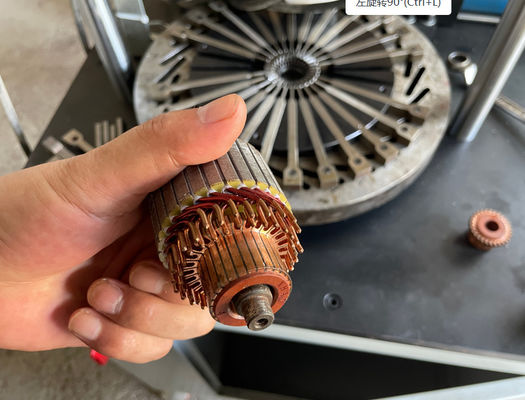

Round wire widely applied in armatue of Diesel starter,
Starter motor armature of family car, oil pump motor,
automobile vehicle armature round copper wire forming,
motores de arranques.
Advantages:
1. High efficiency, Cycle time Around 3s/pc
2. Mitsubishi PLC, Weinview touch screen,Airtac cylinder and valve,Schneider Electrical components
Parameter:
Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm
Wire feeding length: 0~250mm
Efficiency: 2.3s/pc
Power: 500W
Weight: around 700KGS
Dimension: 1700mm*600mm*1650mm
Configuration:
| Control device | Mitsubishi PLC |
| HMI | Weinview touch screen |
| Imported enamel stripping | Korea SPG enamel remover |
| Penumatic unit | Airtac |
| Elecronic unit | Schneider |
Please click below picture to view video
