Paper Wedges Can Be Formed And How The Shapes Are Created With separate tools/molds

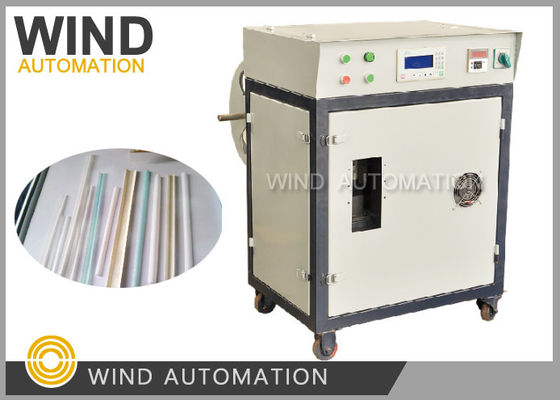

Paper Wedges Can Be Formed And How The Shapes Are Created With separate tools/molds​ WIND-300-WF

This machine form and cut the wedge for stators. It can cut, form, heat wedge. Wedge feeding length, and cutting speed can be programmable in HMI. It adopts a double row mould for wedge cutting. Wedge feeding is controlled by step motor.

(1) Specification

(2) Feature
Varies Wedge Forming Cuffing Creasing Cutting Machine For Slot Wedge Manufacturing

Simple and easy to operate,
No skilled operator needed
Wide application for DMD, NMN,Nomex, Mylar,Fiber,Fiberglass reionformed polyester and so on
No regular maintenance needed

(3) Application
Suitable for small and medium three phase motor, gasoline generator motor etc

DMD, NMN,Nomex, Mylar,Fiber and so on

Question and Answer:

Question:

our topsticks (or wedge sample) can be 0.020”. Please advise if your automatic wedge forming machine

can form this wedge or not.

Answer:

in theory the automatic wedge forming machine can only form DMD paper below thickness 0.35mm,

Please click below photo to view video
