8KW AC Motor Winding Machine , Quench Machine Motor Part Shaft Heat Treatment Equipment
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Total Power: | 8KW |
|---|---|---|---|
| Heat Treatment Area: | Motor Shaft Surface | Working Station: | One Station |
| Temperature: | Can Heat Up To More Than 300 Centigrade | After Sales: | Engineers Available To Service Machinery Overseas |
| Highlight: | coil making machine,electric motor winding machine |
||

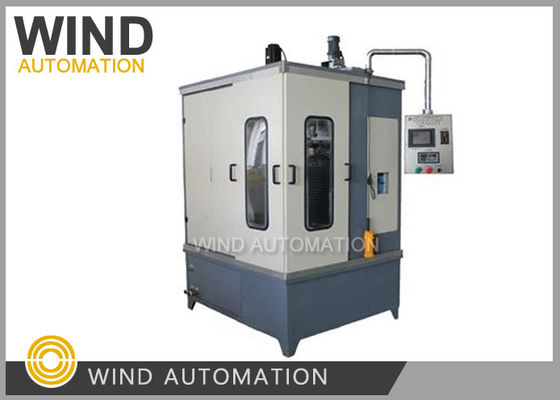

Quenching Machine Motor Part Shaft Heat Treatment Equipment
Application:
To induction harden various shafts surfaces, and inner holes surfaces
Features:
Horizontal machine
Automatic / manual operation
Single shot hardening
Perfect hardened-layer depth
Competitive Advantages:
☑ Easy operation
☑ Uniform hardened-layer depth
☑ Boosting productivity
☑ Convenient maintenance
Primary Specifications:
Part handling plain shaft; below (φ10-φ30)×220mm
Part displacement speed 1-30mm/s CVT (Continuously Variable Transmission)
Part rotation speed 30-200rpm CVT (Continuously Variable Transmission)
Heat stations
Part displacement positioning accuracy ±0.1mm
Dimension (L X W X H) 2,800 X 1,800 X 2,000mm
Total weight Approx. 2tons
Power supply 3-380V 50Hz
Total power 8kW ( power supply NOT INCLUDED)
