Output 700pcs Per 8 hours Starter Armature Roll And Dip Machine Motor Impregnation
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Working Station: | According To Armature Yield Per Shift |
|---|---|---|---|
| Impregnation: | Roll And Dip | Machine Color: | White Or Accordingly To Customer Requirement |
| Power Source: | Electricity | After Sales: | Machine Almost No Need Maintenance |
| Highlight: | vacuum drying oven,varnish impregnation machine |
||

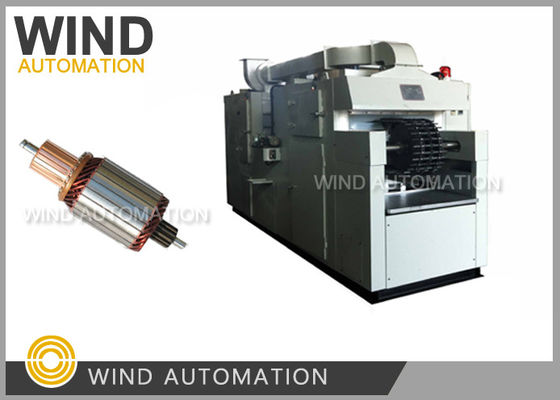

Starter Armature Roll and Dipping Machine Motor Impregnation WIND-ZDG152-60
Application:
Starting motor armature
Competitive Advantages:
1.Fully automatic, operator only need to load and unload armature
2.Rolling and dipping device is at top layer of machine,easy to adjust and maintain
3.Centrifigution exhausting blower suck the exhausting gas,Environment friendly
Example of one Armature roll and dip Machine proposal:
General Output Qty around 700pcs/8hours (get 100pcs in first 2hours and 100pcs in each following
hours)
1. Chain pitch P=152.4mm, Chanin roll and move in guiding roll
2. Working station: 60pcs(both side 120pcs workpiece)
Loading/unloading 8, preheating 9, air cooling 2, rolling and dipping 1, flow 2, curing 38
3. Fast inserted fixture
4. Rolling and dipping device is at top layer of machine, easy to adjust and maintain
5. Workpiece self rotate before the rolling and dipping station, self rotate is drive by double chain with
Pitch P=15.875
6. Heating tunnerl use to keep the heat, and inspection door at side of machine with double layer
temperature keeping door
7. The cycle time, rolling and dipping time can be set on touch screen
8. Use electrical heating pipe with hot air blow device,temperature 150℃ adjustable
There is pre-heating,colloidize, post curing four are for heating, the heating pipe is flyer shape
and life time is long
9.The temperature contoller is can set and show temperature in different area of tunner and alarm if
overheating
10. Centrifigution exhausting blower suck the exhausting gas of loding/unloading , rolling and dipping area
11. PLC :Omron, Touch screen: Weiven Time relay : LG
12.Three phase 380V/50Hz, To tal power:35KW
Parameter:
Working position: 60*2
Position pitch: 152.4mm
Heating time: ≤45 min
Tunnel working temperature: 0 to150 ℃
Pitch time: 0-10min adjustable
Power consumption: 36 KW
Dimension: 6.2*1.15*2.1
Weight:Around 4.2 Ton
Production capability: 700pcs/8 hours
