Armature Hairpin Forming Coil Winding Machine Coil Maker Starter For Staring Motor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Coil Winding Type: | Armature Coil Maker For DC Starter Motor | Wire Type: | Round Wire Or Flat Wire Conductor |
|---|---|---|---|
| Round Flat Conductor: | Induzidos Winding Forming | Station: | One Working Station Comprise Straighten Alignment, Peel Enamel,feeding,cutting And Forming, Unloading. |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
| Highlight: | motor coil winding machine,automatic coil winding machine |
||

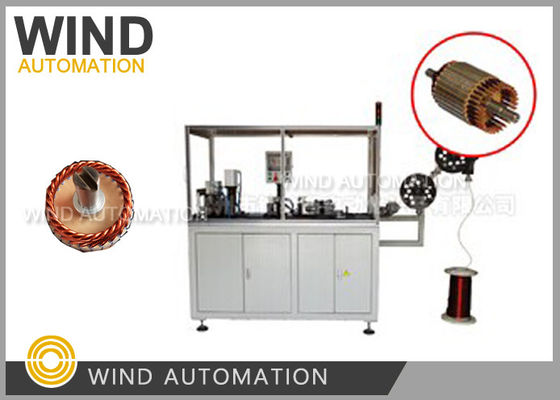

Coil Maker Starter Armature Hairpin Forming Winding Machine For Staring Motor WIND-AWF
Application:
Starter motor, oil pump motor armature, round copper wire conductor production
Advantages:
1. One Machine comprise of automatic straighten alignment, peel enamel,loading feeding,
cutting and forming, unloading, no need to use several machines and
no need operator to transfer between serveral manufacturing machines
2. Peel Enamel Length can be setted precisely and with detection alarm
3. Well known brand part inlcuding Two Servo device,Mitsubishi PLC ensure the conductor forming quality
Parameter:
Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm (AWG8~AWG13)
Wire feeding length: 0~250mm (0~9.8'')
Efficiency: 2.3s/pc
Power: 500W
Weight: around 700KGS
Dimension: 1700mm*600mm*1650mm
NCM No / HS Code: 8479811000
Hairpin forming for starter armature is one of the armature manufacturing process and below information
are required to check when you send inquiry
|
1. Formed conductor drawing |
To check the size of conductor and angle of R size
|
|
2. Armature lamination drawing |
To check the adpation of the formed wire which will be inserted to
armature slot by machine or by hand
|
|
3. Armature sample with formed
wire inserted
|
To check and produce tooling according the actual sample
|
Please click below picture to view video
You may also interest in below starter armature prodution machinery
1-Armature slot insertion machine
2-round wire forming machine.
3-armature head twisting machine.
4-Automatic commutator undercutting machine
5-wire excessive wire overhead cutting machine.
