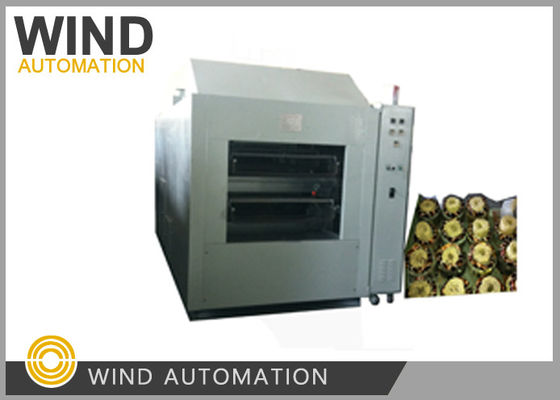

Electricity or Diesel Power Stator Varnish Dipping Machine Motor Insulation
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Working Station: | According To Stator Yield Per Day |
|---|---|---|---|
| Dipping Method: | Varnish Dipping Tank Stay Or Move | Machine Color: | White Or Accordingly To Customer Requirement |
| Power Source: | Electricity Or Diesel | After Sales: | Machine Almost No Need Maintenance |
| Highlight: | vacuum drying oven,impregnation line |
||
Electricity or Diesel Power Stator Varnish Dipping Machine Motor Insulation
Application:
Pump motor stator,Industrial motors, household appliances motor stator winding , transformer windings
and other coils insulation
Advantages:
1. Fully automatical expect loading/unloading stator, ensure stable varnish stator consistency,quality
and ease the labor.
2. After dipping the paint stator film uniform, eliminating the rubbing paint process,
which can save insulation paint varnish, solvents and labor cost.
3. Quick-drying insulating paint can shorten the production cycle, energy and raw materials saved,
at the same time greatly improve the working environment of the operator.
Parameter:
| Name | Unit | 130-16 | 130-26 | 130-46 |
| Station | pcs | 16 | 26 | 46 |
| Dipping depth | mm | 130 | 130 | 130 |
| Basket area | mm | 850×300 | 850×300 | 850×300 |
| Loading- bearing | kg | 80 | 80 | 80 |
| Pitch time | min | 1～90min adjustable | ||
| Heat rise time | min | <45 | ||
| Tunnel Tem. | ℃ | ≤160℃ | ||
| Dimension | m | 3.8×2.2×2.5 | 6×2.2×2.5 | 10×2.2×2.5 |
| Power | kw | 40 | 60 | 80 |
Stator varnish machine example:
Working position: 26
Dipping depth Varnish impregnation: 130mm
Rack loading area: 850*300
Rack loading weight: 80Kg
Pitch time: 1-30min adjustable
Heating time: <45 min
Tunnel working temperature: ≤150℃
Power consumption: 60
Dimension: 6*2.2*2.5
Weight: 5.8 Ton
We produce stator varnish machine in electricity power,diesel power or gas,
It has two types mechanism in the varnish area
1. Varnish tank goes up and down which is driven by the screw rod
2. Varnish tank fixed and the chain goes down and up
Situation 1 is suitable for stator with dipping time requirement, suppose the varnish dippin time is 2
minutes and pitch time is 5 minutes, stator don't need to stay inside the varnish tank for 5 minutes
In situation 2, the varnish tank don't move and don't need transmission, no drive needed,
Stator varnish machine which mainly applied to stator winding insulation treatmen composed of machine
body, water cooler chiller and varnish supply tank.
Question and Answer:
Question:
We cannot recycle the varnish because the varnish is thickened after the trickling process. The temp on
the armature surface is hot. The warm varnish is moving slowly inside the tubes of the trickling pump. I am
wondering if the chiller can help to thinner the varnish so that it can move more freely inside the tube.
Answer:
In the stator varnish and armature rolling and dipping machine,chiller is helpful to solve above problem
Usually the varnish dipping machine for stator and rolling and dipping machine for armature need chiller,
Because the heated workpiece is in the varnish which transfer heat and rise varnish temperature,
The chiller will keep the varnish quality, no deterioration and thinner.
Please click below picture to view video
